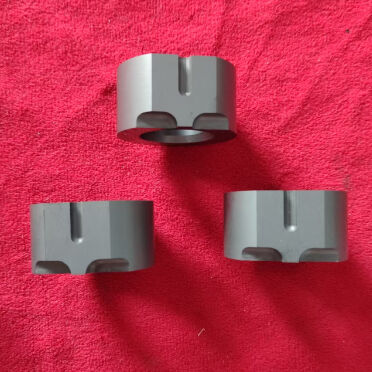

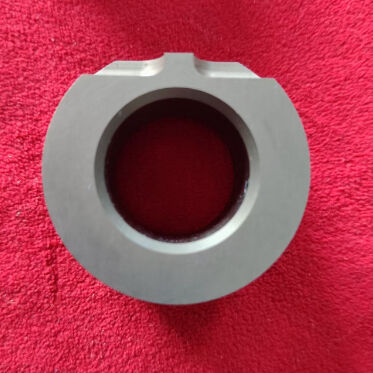

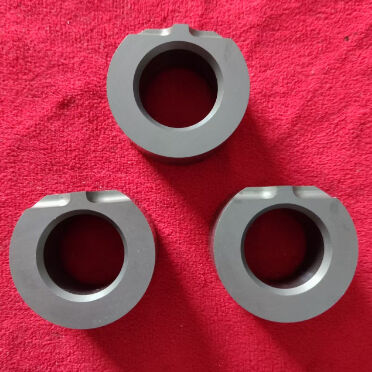

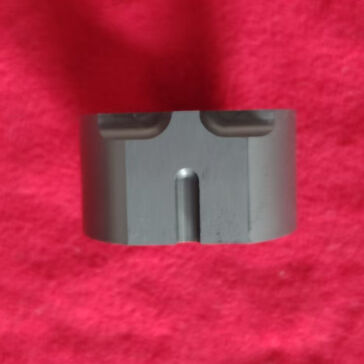

Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Gear Pumps
| Место происхождения | Китай |
|---|---|
| Фирменное наименование | CSQ |
| Сертификация | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Номер модели | Индивидуальные продукты |
| Количество мин заказа | 20-50 шт. |
| Цена | negotiable |
| Упаковывая детали | Пена+картонная коробка |
| Время доставки | 20-45 рабочих дней |
| Условия оплаты | Т/Т |
| Поставка способности | 2000 шт в месяц |
Подробная информация о продукте
| Имя | Керамический подшипник скольжения по индивидуальному заказу | категория | Керамический подшипник скольжения |
|---|---|---|---|
| Материал | Карбид кремния, спеченный без давления | Приложение | Насосы |
| Упаковка | Пена+картонная коробка | Размер | По индивидуальному заказу, согласно чертежам |
| Спецификация | Стандартный размер и индивидуальный | Качество | Высокая точность, длительный срок службы, обслуживание OEM |
| Выделить | 1650℃ Max Temperature Silicon Carbide Sliding Bearing,Corrosion Resistance Ceramic Sliding Bearing,Customized Size SSIC Sliding Bearing |
||
Характер продукции
Custom Silicon Carbide Sliding Bearings for Gear Pumps
Industrial ceramic sliding bearings engineered for harsh environments with maximum temperature resistance up to 1650℃ and superior corrosion protection.
Advanced Ceramic Bearing Technology
Ceramic sliding bearings represent cutting-edge bearing technology manufactured from premium ceramic materials including silicon nitride, silicon carbide, and zirconia. These advanced components deliver exceptional performance surpassing traditional steel bearings in demanding industrial, automotive, and aerospace applications.
Key Performance Advantages
- Corrosion Resistance: Excellent resistance to harsh chemicals and corrosive environments, making them ideal for chemical processing and marine applications
- Reduced Friction: Smoother, harder surfaces minimize friction and wear, significantly extending component lifespan
- High Temperature Tolerance: Maintains structural integrity and performance in extreme heat conditions up to 1650℃
Material Properties
| Maximum Temperature | 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid/alkali corrosion (including hydrofluoric acid) |
Ceramic vs Steel Bearing Advantages
- Superior high temperature performance with stable mechanical properties
- Enhanced performance during temperature fluctuations due to lower thermal expansion
- Improved anti-bite and anti-stuck performance characteristics
- Can operate without lubrication with self-lubricating properties
- Resistant to acid, alkali and salt corrosion
- Electrical insulation and no static electricity generation
- Non-magnetic properties prevent abrasive particle adhesion
Manufacturing Capabilities
With three factories in China and advanced pressing, sintering and processing equipment, we can meet diverse customer requirements. Our company (ZXSQ/CSQ) holds eleven invention patents and maintains a professional team dedicated to ceramic bearing innovation since 1982.
Our Competitive Advantages
- Free sample bearings available for evaluation
- ISO standard compliant manufacturing processes
- In-stock bearing availability for quick delivery
- Small order acceptance with no minimum quantity
- Comprehensive OEM bearing services
- Custom bearing production from drawings or samples
- Competitive factory direct pricing
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of ceramic bearing production experience, maintaining cooperative relationships with domestic and international companies.
How do we guarantee quality?
We produce samples before mass production, follow strict quality control procedures, use precision inspection equipment, and employ double-layer packaging (foam + carton) to ensure product integrity.
What products do we offer?
Ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic bearings, linear bearings, and various ceramic balls.
Why choose us over other suppliers?
As an integrated manufacturer with three factories and modern equipment, we offer better delivery times, product quality, and competitive pricing.
What services do we provide?
We offer high-quality products, full customization based on user needs, and sample confirmation services.
Welcome Your Enquiry
We maintain strategic partnerships with raw material suppliers to ensure consistent quality and pricing stability. With our own raw material production capabilities when needed, we're insulated from international price fluctuations. Customer-focused with quality products and excellent after-sales service, we strive to create value as your trusted partner. Contact us today to discuss cooperation opportunities!
