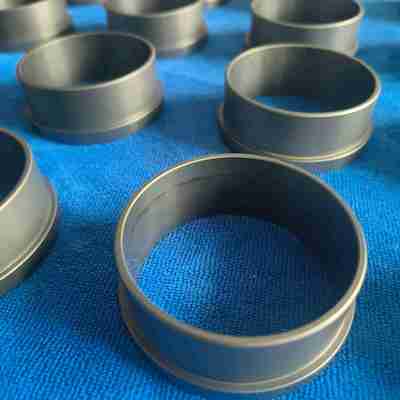

Customized Silicon Carbide Sliding Bearing for Pumps

  • Customized Silicon Carbide Sliding Bearing for Pumps
  • Customized Silicon Carbide Sliding Bearing for Pumps
  • Customized Silicon Carbide Sliding Bearing for Pumps
  • Customized Silicon Carbide Sliding Bearing for Pumps
  • Customized Silicon Carbide Sliding Bearing for Pumps
Место происхождения КИТАЙ
Фирменное наименование CSQ
Сертификация FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Номер модели индивидуальные продукты
Количество мин заказа 20-50 шт
Цена negotiable
Упаковывая детали Пена+коробка коробка
Время доставки 20-45 рабочих дней
Условия оплаты T/T.
Поставка способности 2000 шт в месяц

Свяжитесь я бесплатно образцы и талоны.

WhatsApp:0086 18588475571

Вичат: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Имя Индивидуальный подшипник с раздвижным рукавом керамики Категория Керамический скользящий подшипник
Материал Силиконовый карбид Размер Индивидуально, согласно рисункам
Приложение Насос Упаковка Пена+коробка коробка
Качество Высокая точность, долгая жизнь, OEM -Serive Спецификация Стандартный размер и индивидуальный
Оставьте сообщение
Характер продукции
Silicon Carbide Ceramic Sliding Bearing Sleeves Customized for High-Temperature Environments
Product Overview

Silicon Carbide (SiC) sleeves are high-performance ceramic components manufactured from SiC. They exhibit exceptional wear resistance, corrosion resistance, high hardness, and thermal stability, making them ideal for bearings, seals, and transmission systems in harsh environments across industries like chemical processing, machinery, semiconductors, and energy.

Properties
Property Value
Max Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
Customized Silicon Carbide Sliding Bearing for Pumps 0
Applications
  • Chemical Industry: Pumps, valves, reactor seals
  • Machinery: High-speed bearings, precision components
  • Semiconductors: Wafer handling fixtures
  • New Energy: Photovoltaic and lithium battery production equipment
Advantages of All-Ceramic Bearings vs. Steel Bearings
1. Higher Temperature Resistance

Ceramic bearings maintain superior mechanical stability at elevated temperatures, making them ideal for extreme heat applications where steel bearings would degrade.

2. Superior Performance in Thermal Cycling

Due to their low thermal expansion coefficient, ceramic bearings experience minimal clearance changes under temperature fluctuations, ensuring reliable operation across a wider range of conditions.

3. Enhanced Anti-Seizure & Anti-Jamming Properties

The reduced thermal deformation of ceramic materials minimizes friction-induced binding, significantly improving resistance to seizure and galling.

4. Oil-Free Operation Capability

Ceramic bearings exhibit self-lubricating properties and can utilize process media for lubrication, enabling reliable performance in high-vacuum environments or where traditional lubrication is impractical.

5. Exceptional Corrosion Resistance

Unlike steel, ceramics are impervious to acids, alkalis, and salts, making them perfect for harsh chemical processing, marine, and corrosive industrial applications.

6. Electrical Insulation & Anti-Static Properties

Our ceramic bearings are non-conductive, eliminating static discharge and preventing electrical arcing damage—common issues with conductive steel bearings.

7. Non-Magnetic & Contamination-Resistant

Ceramic's non-magnetic nature prevents magnetic particle adhesion, reducing abrasive wear and ensuring smooth operation in MRI equipment, semiconductor tools, and other magnetic-sensitive environments.

Customized Silicon Carbide Sliding Bearing for Pumps 1
Customized Silicon Carbide Sliding Bearing for Pumps 2
Why Choose Us

We have three factories in China, capable of meeting different customer needs, with advanced pressing, sintering and processing machines.

Our company logos are ZXSQ and CSQ, and we possess eleven invention patents for utility models. The company now has a high-quality professional team consisting of dozens of members, to provide you with high-quality and perfect service, according to customer requirements to order a variety of bearing products.

Since 1982 we have accumulated abundant experience in production over more than 40 years, devoting ourselves whole-heartedly to the research and development of ceramic bearing material, our processing technique and improvement of our equipment.

Having undergone several evolutions and transformations, our company has now become the leading enterprise in China's domestic market in the fields of ceramic bearing and ceramic material products.

Customized Silicon Carbide Sliding Bearing for Pumps 3 Customized Silicon Carbide Sliding Bearing for Pumps 4 Customized Silicon Carbide Sliding Bearing for Pumps 5
Our Bearing Advantages
  • Free Sample bearing
  • ISO Standard
  • In Stock bearing
  • Bearing Small order accepted
  • OEM bearing service
  • Customized bearing, Customer's bearing drawing or samples accepted
  • Competitive factory price bearing
Frequently Asked Questions
Q: Who are we?
A: We are a factory in Beijing, China. We have been producing and selling ceramic bearings for more than 40 years. We have established friendly cooperative relations with many domestic and foreign companies.
Q: How can we guarantee quality?
A: We always produce samples before mass production, and produce in strict accordance with customer requirements and production regulations. After completion, we use inspection equipment for precise product verification, and our packaging adopts double protection of foam and carton to strictly ensure product quality.
Q: What can you buy from us?
A: Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, etc. and all kinds of ceramic balls.
Q: Why should you buy from us not from other suppliers?
A: We are an industry and trade integrated company with three factories, modern production and inspection equipment, enabling better delivery dates and product quality.
Q: What service can we provide?
A: We provide high quality products and customized services, which can be fully customized according to user needs. We can provide samples for customer confirmation.
Welcome Your Enquiry

We cooperate with raw material suppliers to ensure product quality and profit stability without being affected by international raw material price fluctuations. At the same time with raw material production technology, when necessary, we can produce raw materials by ourselves.

We adhere to customer demand as the guidance, and strive to provide customers with quality products and after-sales service, create value for customers, and be customers' partner. Welcome to discuss cooperation!
